Modular Operating Theater Installation Schedule Guide

Introduction

An operating theater tender specification review is essential before a manufacturer, EPC contractor or medical engineering company prepares a compliant technical and commercial proposal.

International hospital tenders often combine architectural specifications, equipment schedules, mechanical requirements, door schedules, reflected ceiling plans and bills of quantities prepared by different consultants. These documents may use inconsistent terminology, conflicting dimensions or unclear supply boundaries.

A technically responsible bidder should not silently select whichever requirement is easiest to price. The correct approach is to identify discrepancies, classify the requirements, issue structured clarification questions and state all quotation assumptions.

This guide explains how to review modular operating theater tender documents without treating common design practices, manufacturer solutions or preliminary drawings as mandatory international standards.

Quick Answer

An operating theater tender specification review should verify five main areas:

Whether all drawings and schedules describe the same project scope
Whether specified products can be manufactured and installed as described
Whether standards and performance requirements are correctly applied
Whether interfaces between walls, ceilings, doors, services and equipment are coordinated
Whether the commercial quotation clearly identifies inclusions, exclusions, assumptions and alternatives

The final review should produce a compliance matrix, discrepancy register, clarification list and clearly defined supply scope before pricing is completed.

Key Takeaways

Never rely on the bill of quantities alone.
Cross-check layouts, elevations, ceiling plans and schedules.
Separate mandatory tender requirements from design preferences.
Confirm which standards apply to the project location.
Do not assume that every stated dimension is an international standard.
Identify contradictions before submitting a price.
Clearly separate manufacturer scope from HVAC, structural and medical-equipment packages.
State deviations and alternatives openly.
Confirm quantities against drawings wherever possible.
Do not claim compliance without suitable evidence.

What Documents Should Be Included in the Review?

A complete review should examine all documents that affect the operating room envelope and related equipment.

Typical tender documents include:

Employer’s requirements
Technical specifications
Architectural layouts
Wall elevations
Reflected ceiling plans
Room data sheets
Door and window schedules
Medical equipment schedules
Mechanical and electrical drawings
Medical gas layouts
Structural drawings
Radiation-shielding reports
Bills of quantities
Finishing schedules
Approved-material lists
Testing and handover requirements
Packaging and shipping requirements
Local codes and referenced standards

Each document should be identified by title, drawing number, revision and date.

If two revisions have been issued, the bidder should not assume that the latest file received is automatically the contractual revision. The tender authority should confirm which revision governs the quotation.

Why Is the Bill of Quantities Not Enough?

A bill of quantities can support pricing, but it may not accurately represent the complete technical scope.

Common problems include:

Wall-panel quantities that ignore double-sided coverage
Ceiling areas that exclude clean corridors or support rooms
Door quantities that do not match the floor plan
Missing observation windows
Built-in cabinets shown on elevations but absent from the bill
Medical gas boxes included under both architectural and MEP packages
Laminar airflow ceilings described without dimensions
Lead-lined doors specified without associated frame shielding
Accessories included as a lump sum without a detailed schedule

Quantities should therefore be checked against the drawings.

For wall panels, the reviewer should determine whether the tender requires:

Internal room surfaces only
Both sides of partitions
Clean-area-facing surfaces only
Column cladding
Wall surfaces above the finished ceiling
Service-cavity enclosures
Separate corridor and support-room finishes

A manufacturer may provide a calculated quantity based on the drawings, but any difference from the tender bill should be recorded rather than hidden.

How Should Conflicting Tender Requirements Be Identified?

A discrepancy register is one of the most useful outputs of an operating theater tender specification review.

Tender item	Example conflict	Required action
Wall material	Specification states stainless steel; finish schedule states painted steel	Request confirmation of material and finish
Panel thickness	Written specification states 50 mm; detail drawing indicates another build-up	Confirm complete wall construction
Ceiling module	Bill states one module; reflected ceiling plan shows another grid	Confirm panel and grid coordination
Door width	Door schedule and floor plan show different dimensions	Confirm clear opening and frame size
Radiation protection	Door schedule states lead lining; shielding report gives no lead equivalence	Obtain shielding consultant’s requirement
Cabinet quantity	Elevations show two cabinets; BOQ lists one	Request quantity confirmation
Wall coverage	Specification says double-sided; drawings do not identify boundary walls	Mark single- and double-sided areas
Lighting	Fixtures appear on drawings but are excluded from equipment schedule	Confirm supply responsibility
HVAC terminals	Grilles are shown without airflow quantities or neck sizes	Request terminal schedule
Room height	Room data sheet and elevations use different finished heights	Confirm installation height and above-ceiling extension

Each conflict should receive a unique reference number so that the client’s response can be traced into the quotation and production documents.

How Should Standards Be Reviewed?

A tender may list many standards, but listing a standard does not automatically make every clause relevant to every supplied product.

The reviewer should ask:

Is the standard applicable to the project country?
Does it apply to the room, the complete system or an individual product?
Is the referenced edition identified?
Does the requirement involve testing, design, installation or operation?
Who is responsible for demonstrating compliance?
Is third-party certification required?
Is a laboratory test report acceptable?
Must testing be repeated for the project-specific construction?

For example, ISO 14644 addresses cleanrooms and associated controlled environments, but it does not prescribe a universal modular operating theater wall-panel size.

Likewise:

A 600 × 1200 mm ceiling panel is not a mandatory international size.
A particular gasket groove dimension is not automatically an ISO requirement.
A clip-in ceiling connection does not by itself prove airtightness.
Stainless steel facing does not automatically create a fire-rated wall.
Positive room pressure does not prove that every wall joint is airtight.
A removable gasket does not automatically make a system compliant with ISO 14644 or NHS guidance.

The bidder should distinguish between:

Explicit standard requirements
Local regulatory requirements
Employer’s specifications
Consultant design preferences
Manufacturer proposals
Normal industry practices
Project-specific engineering recommendations

What Wall-System Information Must Be Confirmed?

The tender should define more than the exposed surface material.

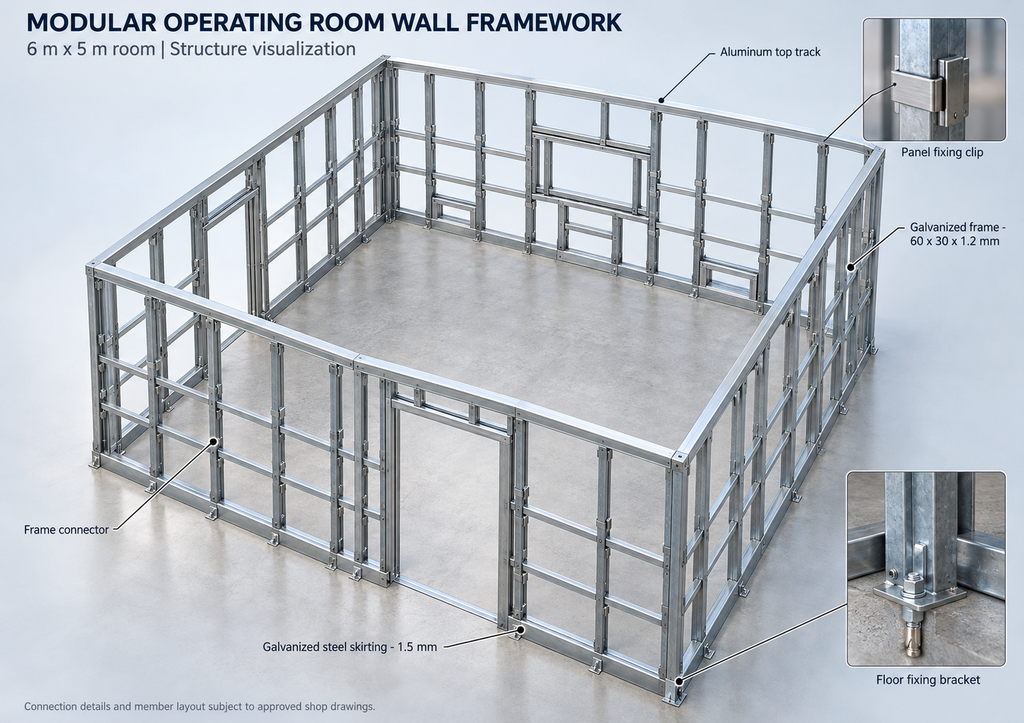

A complete wall-system review should examine:

Facing material
Metal grade
Sheet thickness
Coating or finish
Backing-board type
Backing-board thickness
Insulation or core material
Framing material and thickness
Fixing method
Panel width and height
Horizontal and vertical joint design
Gasket or sealant type
Removability requirements
Corner details
Skirting details
Ceiling junction
Floor junction
Door and window interfaces
Built-in equipment interfaces
Fire-performance requirements
Acoustic requirements
Moisture conditions
Cleaning and chemical exposure

If the specification states only “stainless steel modular wall,” the bidder still needs to know whether the required product is:

A stainless-steel-faced sandwich panel
A folded stainless steel sheet with separate backing board
A hook-mounted removable wall panel
A site-assembled wall lining
A complete double-sided partition system

These constructions are not interchangeable.

JUXING’s cleanroom wall and ceiling panel systems include several panel and fixing options, but the appropriate system must be selected from project requirements rather than product name alone.

What Ceiling Requirements Require Clarification?

Operating theater ceiling specifications frequently mix visible finishes, ventilation components and structural equipment supports.

The review should separate:

Ceiling finish panels
Ceiling suspension system
Structural support for heavy equipment
Air-supply components
Lighting
Fire-protection devices
Access panels
Above-ceiling services

Questions should include:

What is the finished ceiling height?
Is the ceiling panel module fixed or indicative?
Is the system clip-in, lay-in, hook-on or another type?
Are ceiling panels required to be removable?
How will perimeter junctions be sealed?
What loads must the suspension system carry?
Who supplies the structural supports for surgical lights and pendants?
Who supplies the laminar airflow ceiling?
Who connects the main ductwork?
Where are access panels required?
Are light fixtures included in the modular package?
Are sprinkler, detector and medical gas openings coordinated?

Surgical lights, medical pendants and other heavy equipment normally require independent structural support. Decorative or hygienic ceiling panels should not be treated as structural members.

How Should Door Requirements Be Reviewed?

The reviewer should compare the door schedule with the layout, elevations, room functions and equipment-movement routes.

Confirm:

Door type
Sliding or hinged operation
Automatic or manual operation
Single or double leaf
Clear opening width
Structural opening size
Door height
Frame depth
Wall thickness
Surface material
Vision panel
Hardware
Access control
Interlocking
Fire rating
Airtightness requirement
Radiation protection
Lead equivalence
Opening direction
Emergency-release requirements
Power-supply responsibility

“1500 mm door” is ambiguous unless the tender states whether it refers to the leaf width, frame opening, structural opening or clear passage.

For radiation-protected doors, the shielding requirement must be designed or confirmed by a qualified radiation-protection professional based on the equipment, energy, orientation, workload and room layout. The door leaf, frame, surrounding wall and penetrations must be coordinated as one shielding boundary.

How Should Built-In Equipment Be Checked?

Built-in operating room equipment may appear in different documents under different names.

Typical items include:

Medicine cabinets
Instrument cabinets
Anaesthesia cabinets
Catheter cabinets
Writing desks
Computer cabinets
Monitor fascia panels
Keyboard shelves
Control panels
Medical gas terminal boxes
Electrical socket boxes
Film viewers
Clocks and timers
Scrub sinks

For each item, confirm:

Quantity
Location
Dimensions
Mounting height
Recessed or surface-mounted configuration
Wall opening
Structural support
Electrical or gas connection
Door swing or drawer clearance
Perimeter sealing
Maintenance access
Required surface material

The wall elevation is usually more reliable than a generic equipment list for determining position, but discrepancies should still be clarified.

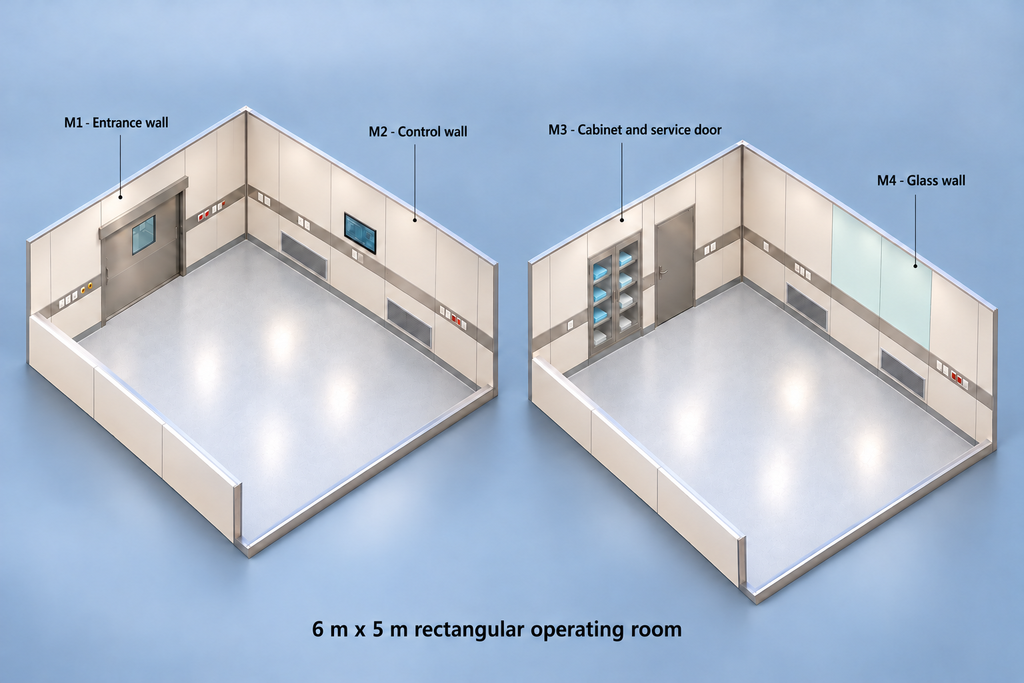

The operating room systems range shows typical wall, ceiling and built-in components that may need coordinated tender review.

How Should HVAC Supply Boundaries Be Defined?

The phrase “complete operating theater system” can create serious scope misunderstandings.

A modular operating theater manufacturer may supply:

Laminar airflow ceilings
Terminal HEPA filter units
Return-air grilles
Exhaust-air grilles
Air-filter components
Wall and ceiling openings for air terminals

This does not necessarily include:

Complete AHUs
Main supply and return ductwork
Cooling plants or chillers
Main HVAC control systems
Complete HVAC installation
Testing and balancing of the complete ventilation system

The quotation should not merely state “HVAC excluded.” It should identify the exact interface.

For example:

JUXING supplies the terminal HEPA housing and ceiling interface. Main ductwork, flexible connection, control wiring, airflow balancing and complete HVAC commissioning are excluded unless specifically listed.

This is clearer than a broad exclusion that leaves responsibility uncertain.

What Should Be Included in a Compliance Matrix?

A compliance matrix connects the tender requirement with the bidder’s proposed solution.

Reference	Tender requirement	Proposed solution	Status	Evidence or comment
Wall specification	316L stainless steel finish	0.8 mm 316L stainless steel with specified backing construction	Comply / clarify	Material data sheet
Ceiling requirement	Modular metal ceiling	Clip-in coated aluminium panel system	Comply with proposed system	Technical drawing
Door schedule	Automatic sliding hermetic door	Proposed size and operating system	Comply subject to confirmed clear opening	Door data sheet
Radiation requirement	2 mm Pb door	Lead-lined leaf and coordinated frame	Clarification required	Shielding design responsibility
Cabinet schedule	Two built-in cabinets per room	Two recessed cabinets	Comply	Cabinet drawing
HVAC scope	Laminar airflow ceiling	Terminal ceiling unit only	Partial scope	Main ductwork excluded

Useful status categories include:

Comply
Comply with clarification
Alternative proposed
Partial compliance
Not included
Not applicable
Information required

Avoid marking an item “Comply” when essential dimensions, testing criteria or interface information are still missing.

How Should Alternatives Be Presented?

An alternative should not be inserted into the base quotation without explanation.

The proposal should distinguish between:

Base-compliant offer

The solution priced against the confirmed tender requirement.

Technical alternative

A different construction or material proposed for engineering, installation or maintenance reasons.

Value-engineering option

An optional solution intended to reduce cost or programme duration while preserving defined performance requirements.

Each alternative should identify:

What changes
Why it is proposed
Cost effect
Programme effect
Maintenance effect
Required client approval
Standards or testing implications
Interfaces affected

A lower-priced material should not be described as “equivalent” unless the relevant performance characteristics have been compared.

How Should Quantities Be Verified?

Quantities should be calculated from coordinated drawings using stated assumptions.

Wall panels

A simplified gross-area calculation may use:\[ \text{Wall area} = \text{wall length} \times \text{wall height} \]

However, the calculation must also consider:

Single-sided versus double-sided coverage
Door and window deductions
Columns
Above-ceiling extensions
Equipment openings
Returns and reveals
Waste and spare-panel allowances

Ceiling panels

Ceiling area is commonly based on the actual covered plan area, not merely the sum of operating room floor areas.

Clean corridors, scrub areas, preparation rooms and support spaces may also be included.

Doors and equipment

Doors, cabinets and windows should be counted by type and size rather than treated as undifferentiated quantities.

If tender quantities differ from calculated quantities, show both:

Tender quantity
Bidder-calculated quantity
Pricing basis
Clarification required

What Commercial Assumptions Should Be Stated?

The technical and commercial proposal should clearly identify:

Incoterm
Currency
Quotation validity
Manufacturing lead time
Drawing-approval period
Delivery destination
Packaging method
Container assumptions
Installation inclusion or exclusion
Supervision inclusion or exclusion
Accommodation and local transport responsibilities
Taxes and duties
Spare-parts allowance
Warranty basis
Payment terms
Testing scope
Documentation scope

If pricing depends on an assumed wall height, coating thickness, panel quantity or exchange rate, the assumption should be visible.

Hidden assumptions often become disputes after contract award.

What Should Be Included in the Clarification List?

A good clarification question should be specific and easy to answer.

Instead of asking:

Please confirm wall panels.

Ask:

Drawing A-201 shows double-sided modular wall coverage around Rooms OR-01 to OR-04, while BOQ Item 3.2 appears to include only one surface. Please confirm whether both faces of internal partitions are included.

A tender clarification schedule should include:

Clarification number
Document reference
Drawing or clause reference
Question
Reason for clarification
Pricing impact
Programme impact
Client response
Response date
Final quotation treatment

Buyer’s Checklist

Before accepting an operating theater proposal, verify:

All tender revisions are identified.
Layouts and room data sheets are consistent.
Wall heights are confirmed.
Single-sided and double-sided wall coverage is marked.
Surface materials and backing construction are defined.
Ceiling areas and modules are confirmed.
Heavy equipment has independent structural support.
Door sizes refer to a clearly defined dimension.
Automatic and manual doors are separated.
Radiation requirements are based on specialist design.
Built-in cabinets and equipment match the elevations.
HVAC terminal components are separated from the main HVAC system.
Lighting scope is clearly stated.
Compliance status is supported by evidence.
Deviations and alternatives are openly listed.
Quantities have been checked against drawings.
Installation and supervision responsibilities are defined.
Packaging and shipping assumptions are stated.
Testing responsibilities are allocated.
All unanswered clarifications are included in the quotation assumptions.

Common Misconceptions

“If the BOQ lists a quantity, the bidder should price it without checking.”

The BOQ may contain omissions or quantities that conflict with the drawings. The bidder should identify discrepancies and explain the pricing basis.

“Every requirement in a tender is an international standard.”

Some requirements are consultant preferences, employer requirements or project-specific dimensions.

“A product made from stainless steel is automatically compliant.”

Compliance may also depend on thickness, backing, joints, framing, adhesives, fire performance and installation details.

“A complete operating theater package always includes the complete HVAC system.”

Not necessarily. Terminal components and the main HVAC system may belong to different supply packages.

“Saying ‘compliant’ is enough.”

A credible compliance statement should reference drawings, product data, test evidence or clearly stated design conditions.

“Clarification questions make a bidder look inexperienced.”

Well-structured questions demonstrate that the bidder has reviewed the tender carefully and understands the technical risks.

Expert Tip

Create one marked-up master drawing that uses different colours to identify:

Included wall surfaces
Excluded wall surfaces
Double-sided partitions
Ceiling coverage
Doors and windows
Built-in equipment
Air terminals
Items requiring clarification

This visual scope drawing can prevent more misunderstandings than a long written quotation alone.

Frequently Asked Questions

What is an operating theater tender specification review?

An operating theater tender specification review is a systematic comparison of technical specifications, drawings, schedules, quantities, standards and supply boundaries before a proposal is submitted.

Who should perform the review?

The review should involve people with knowledge of modular wall systems, ceilings, doors, HVAC interfaces, medical services, construction logistics and commercial scope.

Should a manufacturer correct the consultant’s design?

A manufacturer may identify conflicts and propose technical alternatives, but project-design authority remains with the responsible consultants and client representatives.

Can the bidder change specified materials?

A bidder may offer an alternative if the tender permits it, but the alternative should be clearly separated from the base-compliant offer and supported by a technical comparison.

How should unresolved questions be handled?

Unresolved questions should become explicit quotation assumptions, exclusions or provisional items. They should not be silently interpreted.

Does ISO 14644 certify an operating theater wall panel?

No. ISO 14644 addresses cleanrooms and controlled environments. A wall panel does not become “ISO 14644 certified” simply because it is intended for a clean operating room.

Can JUXING review international operating theater tender documents?

JUXING can review relevant drawings, wall and ceiling specifications, door schedules, built-in equipment lists and product quantities to prepare a coordinated manufacturing proposal. Final design approval and jurisdictional compliance remain with the responsible project professionals.

Conclusion

A thorough operating theater tender specification review transforms a collection of drawings and clauses into a clear, manufacturable and commercially controlled scope.

The review should expose contradictions, verify quantities, distinguish standards from design preferences and allocate responsibilities across the modular enclosure, specialist services and medical-equipment packages.

A strong tender response does not hide uncertainty. It records assumptions, asks precise questions and explains how the proposed wall panels, ceilings, doors, cabinets and terminal components correspond to the project documents.

International buyers can submit drawings, room schedules and technical specifications through JUXING project support for a project-specific review and quotation.
